4″ Twin Urethane Desilter Hydrocyclone Assembly for Mongoose PT Mud Cleaner
4″ Twin Urethane Desilter Hydrocyclone Assembly for Mongoose PT Mud Cleaner, supplied as a compatible replacement for reference P/N 9622220. Designed for drilling fluid desilting and solids-control applications. Matching 90° polyurethane elbow, reference P/N 9622582, is also available.
Description
4″ Twin Urethane Desilter Hydrocyclone Assembly
Pan Oil Tools manufactures and supplies 4″ twin urethane desilter hydrocyclone assemblies for oilfield drilling fluid solids-control and mud-cleaning applications.
This hydrocyclone assembly is designed for use in Mongoose PT mud cleaner and D-Silter configurations and is supplied as a compatible replacement for reference M-I SWACO P/N 9622220, identified as a Clone Twin 4″ Urethane Complete with 1/2″ Apex.

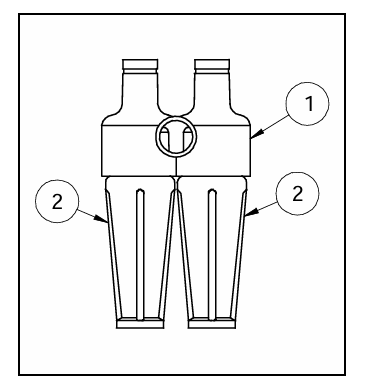

The assembly consists of two 4″ hydrocyclones in a twin configuration and is used in the desilter stage of a drilling fluid solids-control system for removing fine solids from drilling mud.
The urethane/polyurethane construction is suitable for demanding drilling fluid applications where the hydrocyclone is exposed to abrasive solids.
Mongoose PT Replacement Hydrocyclone
Pan Oil Tools supplies this 4″ twin urethane desilter hydrocyclone as a compatible replacement for worn or damaged hydrocyclone assemblies used on applicable Mongoose PT mud-cleaning equipment.
Reference Part Number: 9622220
The referenced configuration includes a 1/2″ apex. Related replacement components can also be supplied according to the required configuration.
A matching 90° polyurethane elbow with 2″ grooved end, reference P/N 9622582, is also available for applicable Mongoose PT desilter configurations.
Customers looking for a replacement hydrocyclone can provide the equipment make and model, existing part number, photographs, dimensions or drawings to help confirm the required configuration.
Technical Specifications
| Specification | Details |
| Product Type | Twin Desilter Hydrocyclone Assembly |
| Hydrocyclone Size | 4″ |
| Configuration | Twin 4″ Hydrocyclones |
| Construction | Urethane / Polyurethane |
| Application | Drilling Fluid Desilting |
| Equipment Application | Mongoose PT Mud Cleaner / D-Silter |
| Reference Part Number | 9622220 |
| Reference Description | Clone Twin 4″ Urethane Complete w/ 1/2″ Apex |
| Apex Size | 1/2″ / Customized |
| Feed Liner | Urethane |
| Reference Flow Rate | 150 GPM at 45 PSI* |
| Reference Mud Weight | 9.5 ppg* |
| Associated Elbow | 90° Polyurethane Elbow, 2″ Grooved End |
| Elbow Reference | 9622582 |
Applications
- Oil & Gas Drilling
- Drilling Fluid Solids Control
- Mud Cleaning Systems
- Drilling Fluid Desilting
- Mongoose PT Mud Cleaners
- D-Silter Systems
- Drilling Rig Solids-Control Systems
- Replacement of Worn Hydrocyclone Assemblies
- Replacement of Damaged Desilter Cones
- Oilfield Drilling Fluid Processing
Key Features
- 4″ twin hydrocyclone configuration
- Urethane/polyurethane construction
- Designed for drilling fluid desilting applications
- Compatible replacement reference for P/N 9622220
- 1/2″ apex configuration
- Suitable for Mongoose PT mud-cleaner applications
- Associated P/N 9622582 polyurethane elbow available
- Replacement components available according to configuration
- Suitable for oilfield solids-control applications
- Replacement manufacturing based on part number, drawing or existing component details
OEM DISCLAIMER
OEM Reference Disclaimer: M-I SWACO, Mongoose and other OEM names, trademarks and part numbers referenced on this website are used solely for identification, compatibility and reference purposes. Pan Oil Tools is an independent manufacturer and supplier of compatible replacement products and is not affiliated with, sponsored by, or authorized by the respective OEM unless expressly stated. Original equipment manufacturers referenced on this website do not endorse, sponsor, or warranty products supplied by Pan Oil Tools.
